Custom fully automatic duct production line to meet different duct processing demands

Connect with Ruifeng Machinery

In the global HVAC and sheet metal fabrication sector, duct processing demands vary drastically across different workshop scales, project types, material specifications and production scenarios. Standard off-the-shelf duct production lines often fail to align with unique operational needs, leading to inefficient workflow, wasted space, material loss and limited product diversity. As a professional manufacturer based in Foshan, Guangdong, Refine Machinery specializes in tailored fully automatic duct production line solutions, designed to break the limitations of one-size-fits-all equipment and fulfill diversified, scenario-specific duct processing requirements for global clients. With years of R&D and manufacturing experience in ventilation duct and sheet metal forming equipment, we adhere to the core philosophy of Technology as the Foundation, Quality for Development and the tenet of Customer First, Reputation First, delivering customizable, high-performance duct lines that combine precision, stability and flexibility to empower every fabrication workshop.

Unlike generic equipment suppliers, Refine Machinery does not limit clients to fixed models. We provide full-circle customization services, covering parameter adjustment, structural modification, functional expansion and layout design, based on customer drawings and actual processing demands. Our product portfolio includes Type II, III, V linear and U-shaped automatic duct production lines, all supporting personalized customization to match small-batch customized processing, large-scale continuous production, special-specification duct manufacturing and other diverse scenarios. Backed by premium core configurations, mature processing technology and a complete quality assurance system, our custom duct lines stand out in the market for reliable performance and targeted adaptability.

Flexible Model Customization: Match Every Workshop Scale & Layout

The foundation of targeted duct processing is selecting and customizing the right production line model to fit workshop space, output targets and daily workload. Refine Machinery offers three core customizable duct line series, each adjustable to meet unique spatial and capacity needs.

Type II Automatic Duct Production Line is the optimal choice for small and medium-sized workshops with limited floor space and mid-volume standard duct orders. We customize the number of telescopic racks, sheet processing width and coil weight according to workshop dimensions, pairing it with dual telescopic racks and a main unit integrating leveling and shearing functions. This compact model preserves high efficiency while fitting narrow workshop layouts, perfect for fabricators focusing on rectangular duct production.

Type III Automatic Duct Production Line adds a professional bending function based on the Type II model, suitable for medium-sized workshops pursuing integrated one-stop processing. Customization options include adjusting bending accuracy, processing speed and sheet thickness adaptability, eliminating secondary handling and streamlining production flow for stable batch orders.

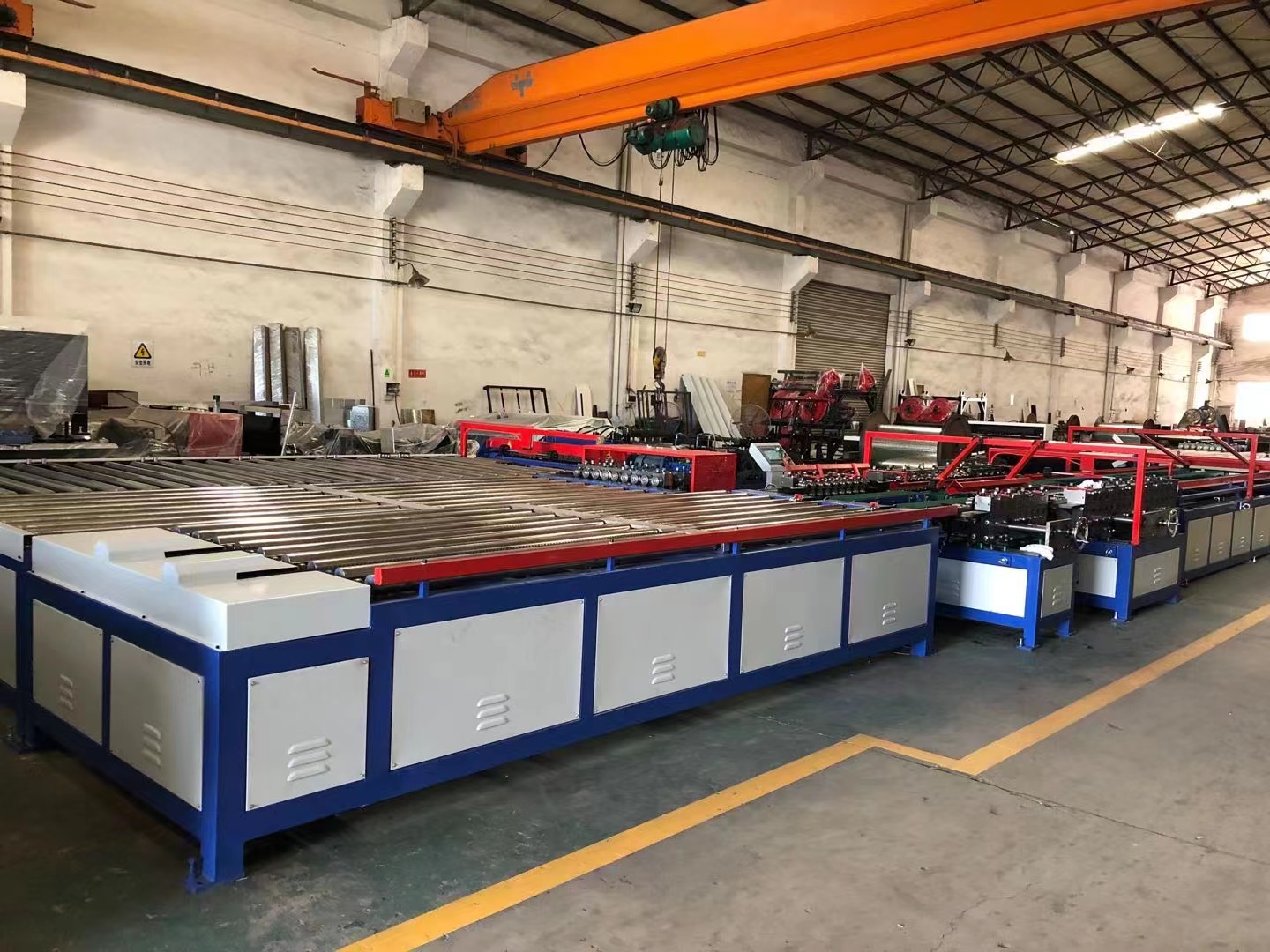

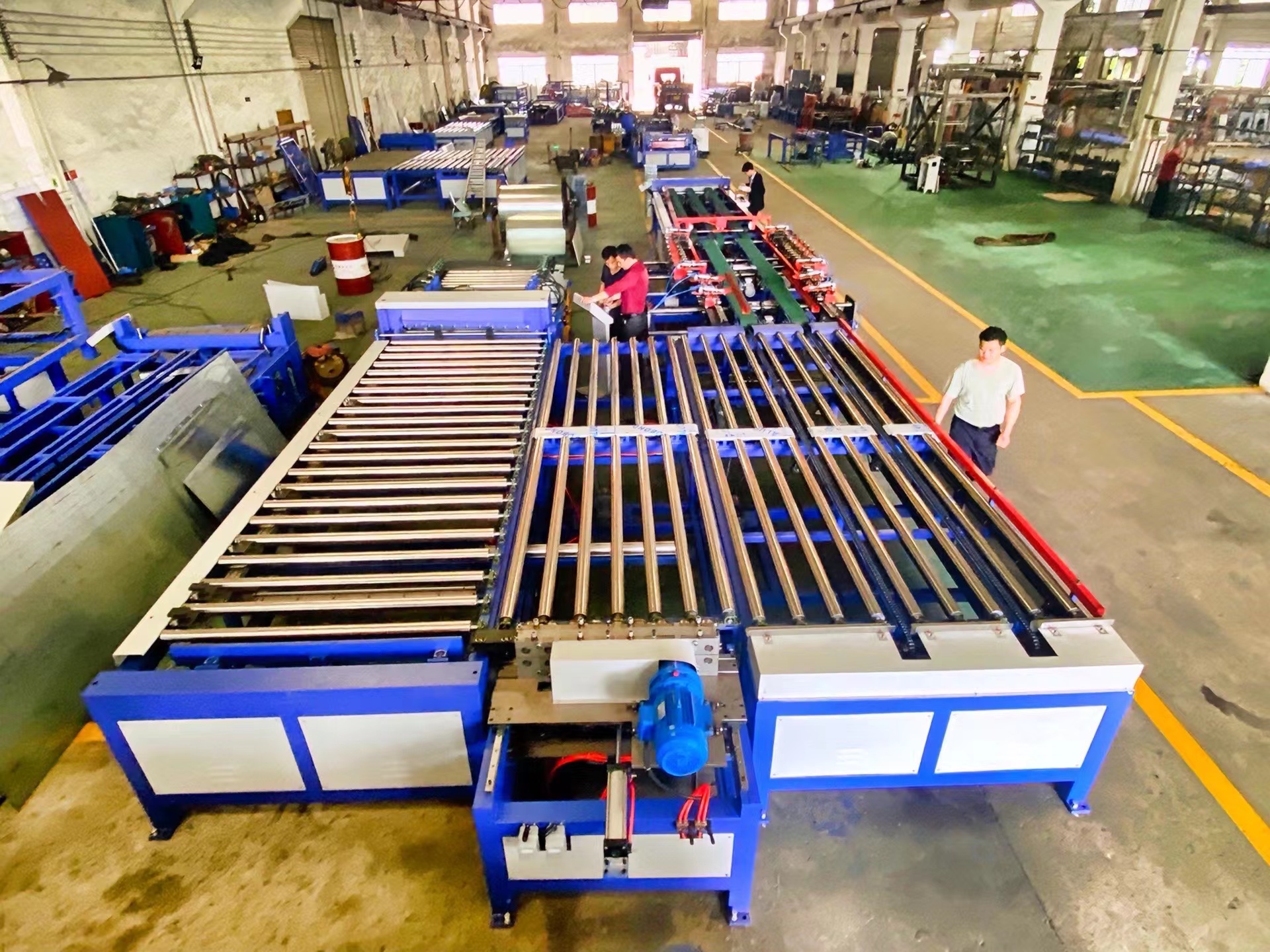

Type V Linear/U-shaped Automatic Duct Production Line serves large-scale factories and high-volume production bases, our flagship customizable solution. Clients can choose between linear and U-shaped layouts to optimize space utilization—U-shaped design saves horizontal space for compact large workshops, while linear layout suits open factory settings. Equipped with a reciprocating lifting seaming machine, four-machine linked TDF flange machine and automatic bending frame, this model supports customization for self-framed and inserted flange duct production, catering to large-scale, diversified order demands.

Parameter & Functional Customization: Adapt to Diverse Material & Duct Types

Duct processing varies greatly in material types, sheet thickness and product specifications, and Refine’s custom duct lines are engineered to handle these variables with precision. We conduct in-depth demand analysis for each client, adjusting core parameters and adding targeted functions to ensure perfect compatibility with all processing requirements.

Formaterial adaptability customization, our lines can be tailored to process galvanized sheets, stainless steel sheets, aluminum sheets and other common HVAC duct materials, with adjustable processing thickness ranging from 0.4mm to 2.0mm. We optimize the feeding system, leveling module and forming mold pressure based on material hardness, ensuring smooth forming without wrinkles or deformation.

For size and specification customization, we adjust sheet feeding length, processing width and coil weight according to customer drawings, supporting non-standard duct sizes beyond conventional specifications. The high-precision servo system (Panasonic or Yaskawa) maintains tight dimensional control even for customized specs, with an error margin controlled within an industry-leading range.

For functional expansion customization, clients can add auxiliary modules such as automatic feeding systems, fixed-length cutting devices and flange forming assemblies. For fabricators specializing in special-shaped ducts, we customize the forming mold and control program to realize one-time forming of atypical duct structures, reducing manual intervention and secondary processing.

Core Configuration Customization: Balance Performance & Budget

Stability and precision are non-negotiable for custom duct lines, and Refine Machinery allows clients to customize core configurations while ensuring reliable performance, balancing operational efficiency and budget constraints.

All our custom lines adopt international top-tier core components as standard, with optional upgrades available: servo systems feature Panasonic or Yaskawa motors for precise feeding; control systems use Siemens PLC for stable intelligent operation; hydraulic systems are equipped with Taiwan valve groups and Beijing Huade overflow valves for smooth transmission; electrical components include Schneider contactors and Weidmüller relays for long service life. Clients can select configurations based on production intensity and budget, without compromising core performance.

We also optimize the rigidity and structure of the integrated frame based on workshop operating conditions, reinforcing vibration absorption components for high-intensity production environments to reduce wear and extend equipment lifespan. Every custom configuration undergoes strict testing and verification before delivery, ensuring consistent performance even with personalized adjustments.

Full-Process Custom Service: From Design to After-Sales

Refine Machinery’s customization goes beyond equipment hardware—we provide a full-process, client-centric service system to ensure the final production line perfectly matches actual processing demands and operates seamlessly long-term.

Our custom service starts with pre-sales demand assessment: our technical team communicates with clients to analyze workshop layout, production volume, material types and target duct specifications, providing tailored design proposals and drawing optimization suggestions. We then proceed with precision manufacturing based on finalized drawings, strictly following quality standards and conducting full-range testing to verify customization effects.

After production, we offer on-site installation and commissioning, one-on-one operator training, and a detailed operation and maintenance guide. Post-delivery, our comprehensive after-sales support and complete warranty system provide timely troubleshooting and maintenance assistance. We also support later functional upgrades and parameter adjustments, ensuring the production line evolves with changing client demands.

Why Choose Refine Custom Fully Automatic Duct Production Line

In a market filled with standardized equipment, Refine Machinery’s custom duct production lines fill the gap of personalized HVAC duct processing, solving the pain points of mismatched equipment and workshop needs, low adaptability and limited product types. Our customization capabilities cover model, parameter, function and configuration, paired with premium components, stable performance and high forming precision, making us the preferred partner for global fabricators seeking tailored solutions.

Whether you need a compact line for small workshops, a high-efficiency line for large factories, or a specialized line for non-standard duct manufacturing, Refine Machinery delivers a fully customized solution that aligns with your unique processing demands. We are committed to turning every client’s specific requirements into high-performance, reliable equipment that boosts efficiency, reduces costs and drives business growth.
